Brand New
Reference MRP: Rs. 717,900
Our Price: Rs. 717,900

Tap For Details


For our absolute best pricing, reach us directly at 9764227764.
We can do great deals for serious buyers!

(Includes GST and free shipping)

Ask a Question

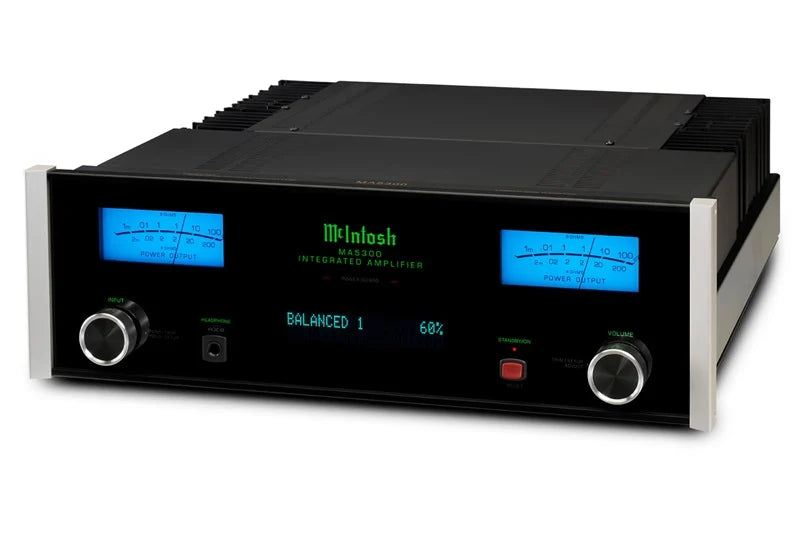

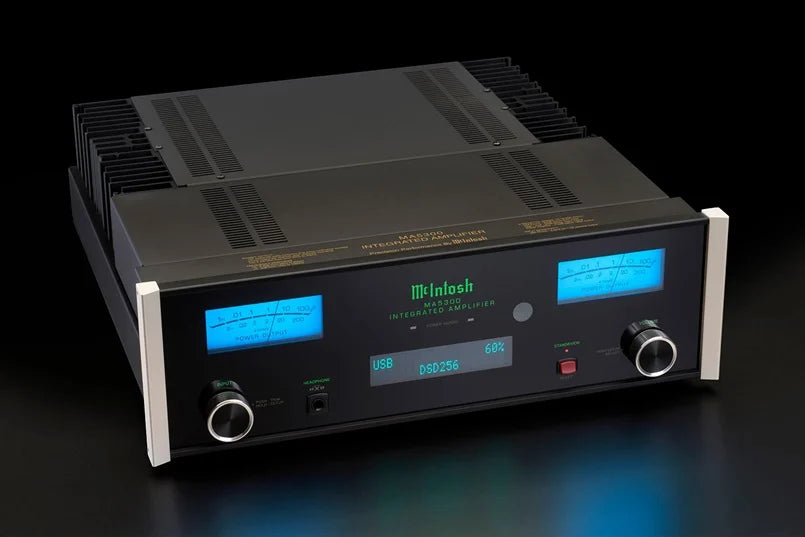

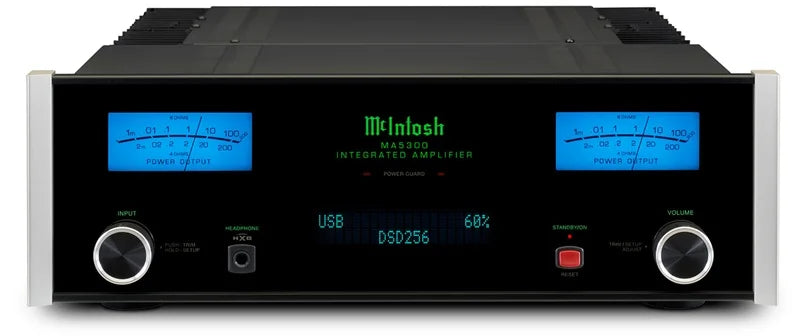

McIntosh MA5300 Integrated Amplifier
McIntosh MA5300 Integrated Amplifier
Reference MRP: Rs. 717,900
Our Price: Rs. 717,900

Tap For Details

About This Product

Brand New Unit

Original factory packing and brand warranty

Highlights

Compact Yet Powerful: The MA5300 is McIntosh’s smallest solid-state integrated amplifier, delivering big sound in a compact form.
Impressive Power Output: A direct-coupled amplifier providing 100 Watts per channel into 8 Ohms or 160 Watts per channel into 4 Ohms, with dual-scale blue Watt meters for accurate power readouts.
Versatile Connectivity: Features 12 inputs, including 6 analog (4 unbalanced, 1 balanced, and 1 Moving Magnet for turntables) and 6 digital inputs (2 coaxial, 2 optical, 1 USB, and 1 MCT for SACD/CD transports).
Future-Ready Digital Audio: Equipped with the DA1 Digital Audio Module, housing an 8-channel, 32-bit DAC in Quad Balanced mode, supporting DSD256 and DXD 384kHz playback. The DA1 is modular and upgradable as digital audio technology evolves.
User-Friendly Customization: Input names can be personalized for streamlined system control and ease of use.
Innovative McIntosh Technology:
•    Monogrammed Heatsinks™ connected to high-current output transistors for instant performance without warm-up.
•    Powerful new microprocessors and advanced audio-grade circuit components for exceptional sound quality.
•    Bass and Treble Tone Controls to tailor your music to personal preferences.
Roon Tested: Certified for seamless integration with Roon software, ensuring optimized audio playback and effortless configuration.
Advanced Features for Versatility: Includes McIntosh technologies like Power Guard®, Sentry Monitor™, Home Theater PassThru, and High Drive headphone amplifier with Headphone Crossfeed Director (HXD®).
Classic McIntosh Aesthetic: Signature blue Watt meters, black glass front panel, aluminium end caps, control knobs, illuminated logo, and gold-plated speaker binding posts complete its timeless design.



"Nobody does it 'the McIntosh way.' You get all the things you want from an amplifier: power, control and high resolution with tons of details. You get an amplifier that plays from the heart." Awarded 5 out of 5 stars. - Stereo+

Listening Notes

A Bordeaux Blend—smooth and balanced, with a structured depth that combines richness and refinement. Notes of dark berries and a touch of spice provide warmth and complexity, delivering an experience that is both powerful and harmonious.

Specs & Features

FEATURES
• 100 Watts into 8 Ohms
• 160 Watts into 4 Ohms
• Comes with DA1 Digital Audio Module installed

SPECIFICATIONS
ELECTRONIC SPECIFICATIONS
Power Output per Channel: 100 Watts into 8 Ohms,160 Watts into 4 Ohms
Number of Channels: 2
Speaker Impedance: 4 or 8 Ohms
Rated Power Band: 20Hz to 20kHz
Total Harmonic Distortion: 0.005%
Dynamic Headroom: 1.8dB
Frequency Response: +0,-0.5dB 20Hz to 20kHz
Frequency Response: +0, -3dB 10Hz to 100kHz
Sensitivity Phono (Moving Coil): N/A
Sensitivity Phono (Moving Magnet): 2.5mV
Sensitivity High Level (Balanced / Unbalanced): 0.5V/0.25V
Sensitivity (Power Amp input):1V
Signal To Noise Ratio (Moving Coil): N/A
Signal To Noise Ratio (Moving Magnet): 82dB
Signal To Noise Ratio (High Level): 95dB
Signal To Noise Ratio (Power Amp input):110dB
Input Impedance (Balanced / Unbalanced): 20K/20K
Damping Factor: 8 Ohms: >200, 4 Ohms: >100
Maximum Output (Balanced / Unbalanced): 8V Unbalanced

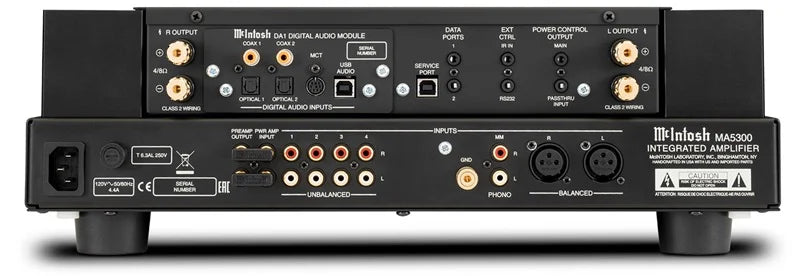

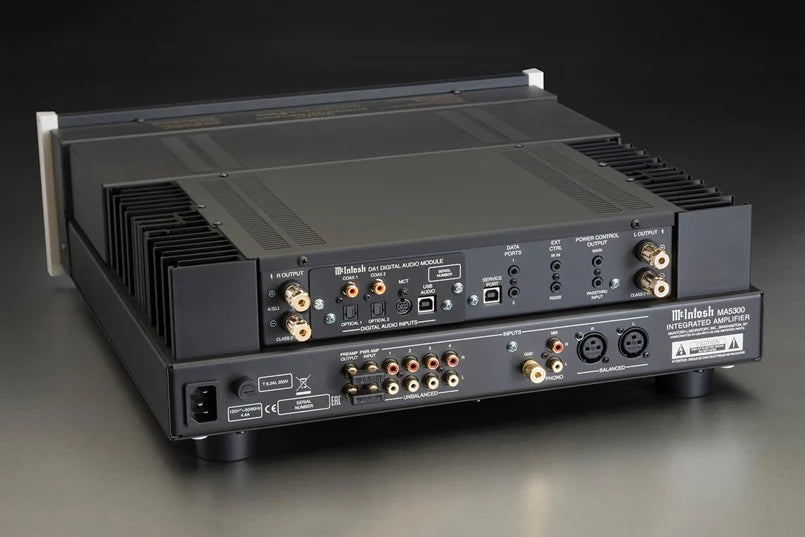

CONNECTIVITY
Balanced Input: 1
Unbalanced Input: 4
Phono Input Moving Coil: 0
Phono Input Moving Magnet: 1 (fixed loading)
Upgradeable Digital Audio Module: Yes, DA1
Digital Coaxial Input: 2
Digital Optical Input: 2
Digital MCT (DIN) Input: 1
Digital USB Input: 1
HDMI (ARC) Input: 0
Balanced Variable Output: 0
Unbalanced Fixed Output: 0
Unbalanced Variable Output: 1
Headphone Output: 1/4" High Drive with Headphone Crossfeed Director (HXD®)
Subwoofer Output: 0
AM/FM Tuner option: No
Home Theater PassThru: Yes
Unbalanced Analog Connector Type: Standard
Speaker Binding Post Type: Standard
Service Port: 1

DIGITAL AUDIO SPECIFICATIONS
Digital-to-Analog Converter (DAC) Type: 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate: 24-bit/44.1kHz to 192kHz
Digital Optical Input Sample Rate: 24-bit/44.1kHz to 192kHz
Digital MCT (DIN) Input Sample Rate:16-bit/44.1kHz (CD)
DSD64 (SACD)
Digital USB Input Sample Rate: 32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz

CONTROL
Tone Controls: Bass and Treble
Tone Bypass and Input Assign: Yes
RS232 Control Input: Yes
Power Control Output: 1 Main
Rear Panel Data Port: 2
Rear Panel IR Sensor Input: Yes
Input Level Match: Yes

GENERAL SPECIFICATIONS
Vacuum Tube or Solid State: Solid State
Output Type: Direct Coupled
Output Meters: Yes
Dual Layer Chassis: Yes
Chassis Finish: Black painted steel
McIntosh Monogrammed Heatsinks™: Yes
Standby Power Requirement: <0.25 Watts

WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D):17-1/2" (44.45cm) x 6" (15.2cm) x 18-3/4" (47.6cm)
Unit Weight: 38 lbs (17.2 kg)
Shipping Weight: 55.5 lbs (25.2 kg)
