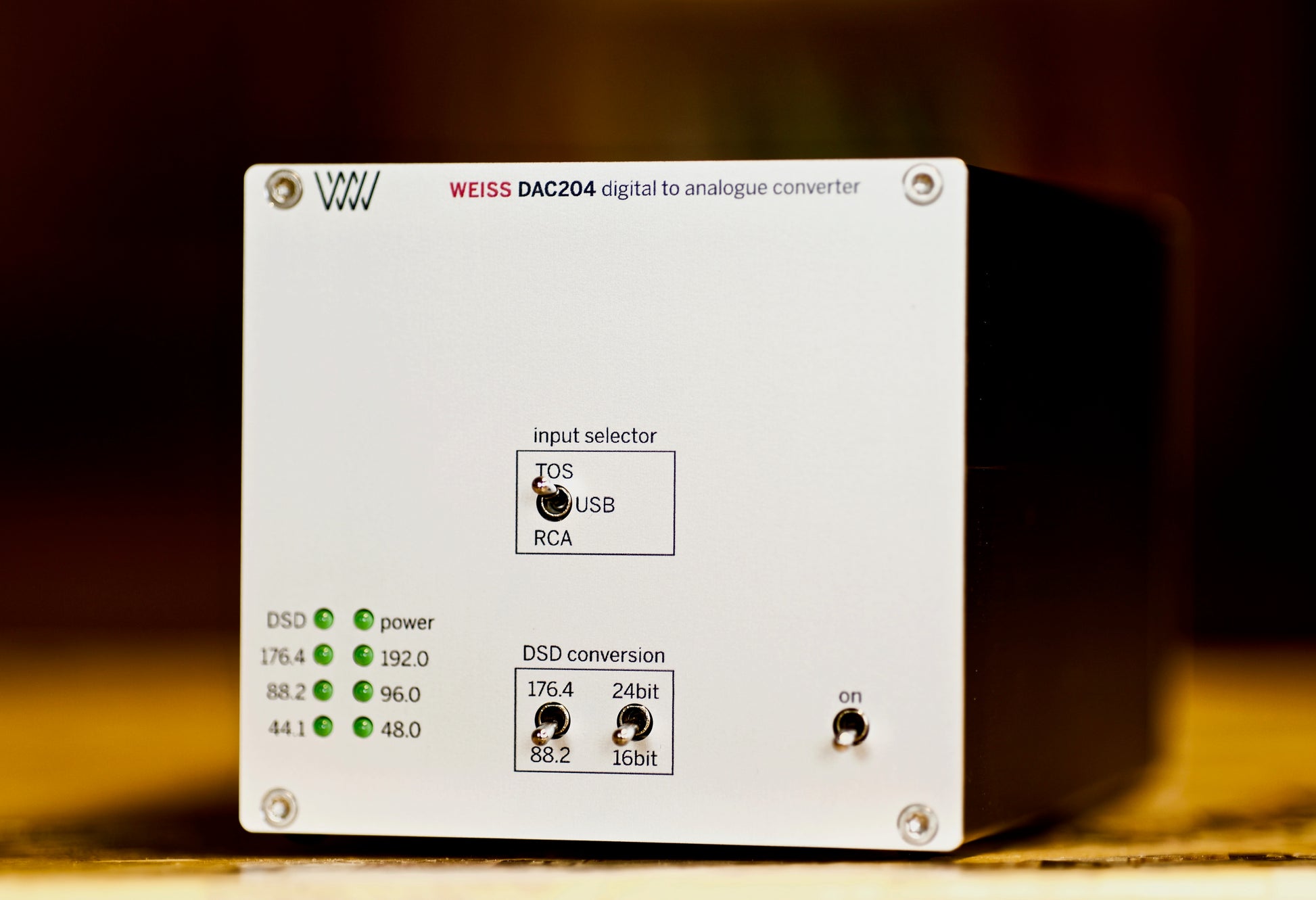

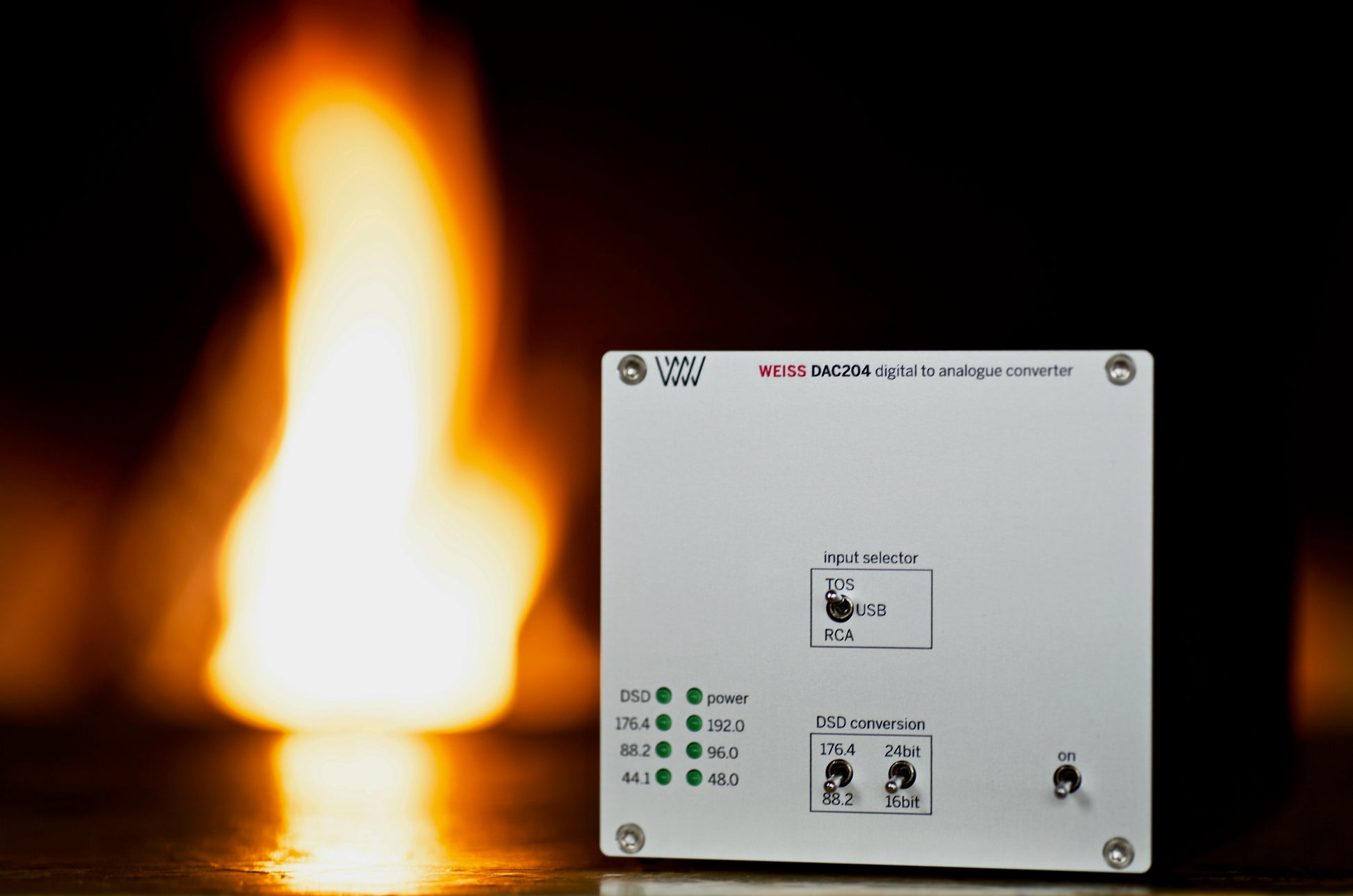

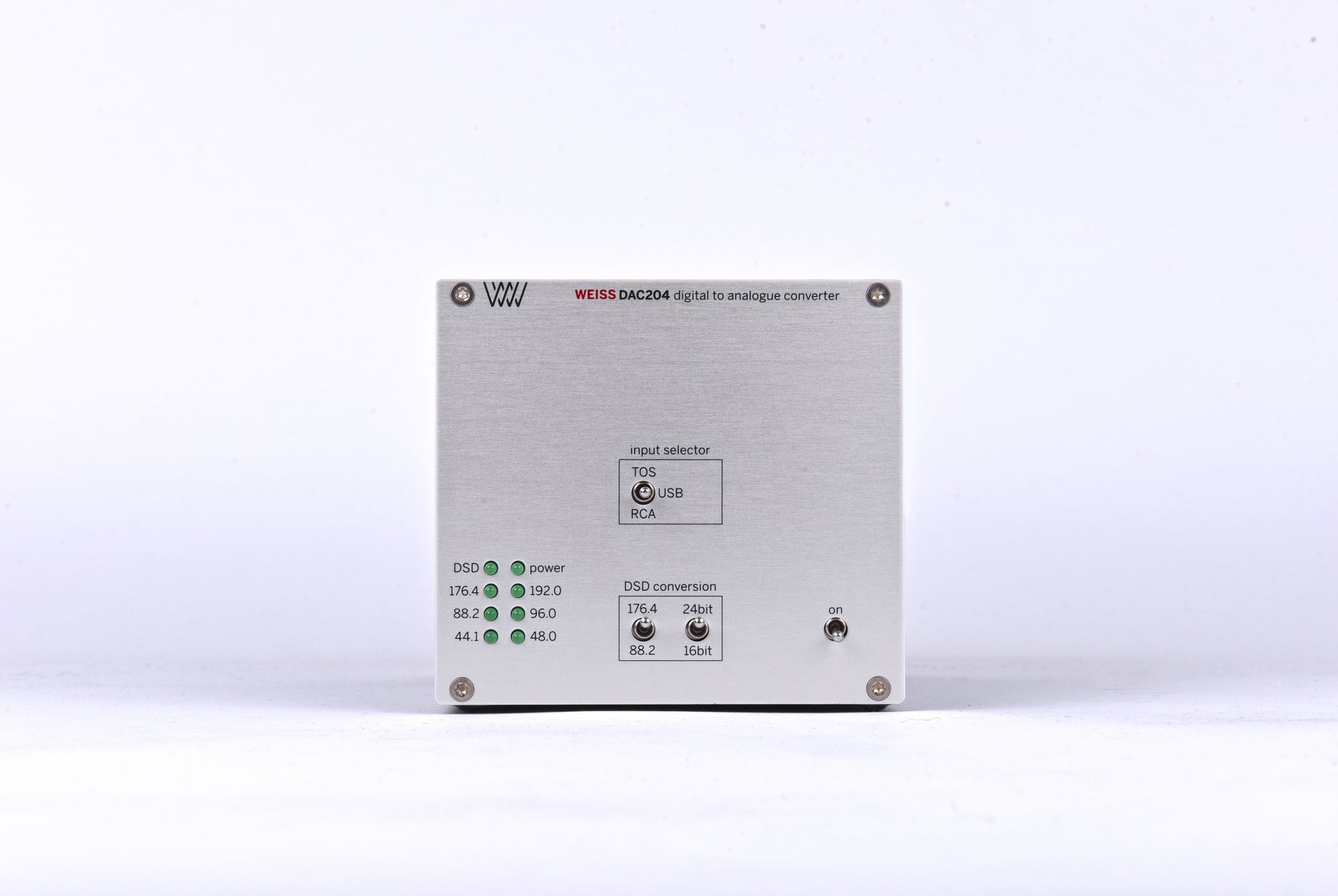

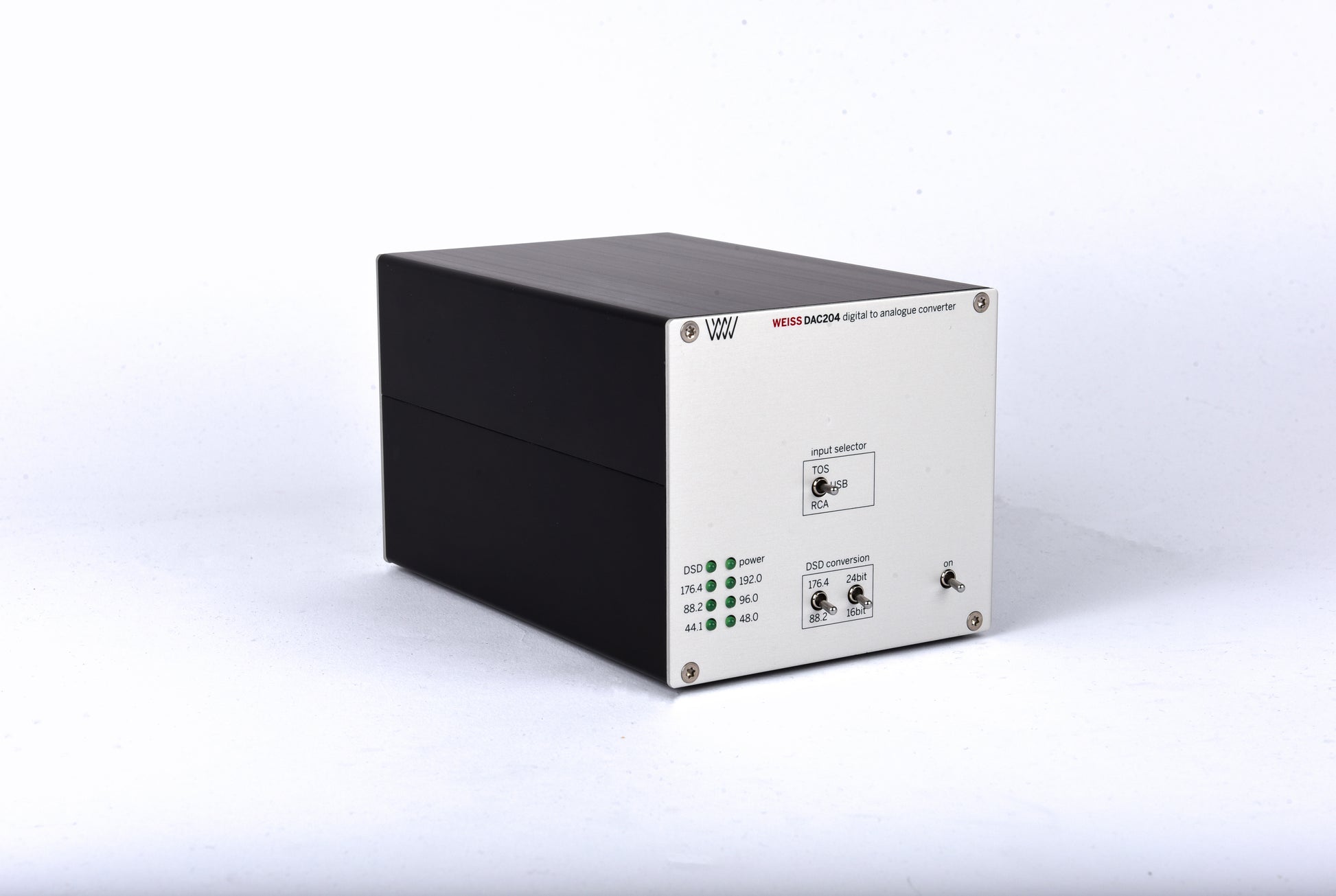

Weiss DAC 204 Multi-format DAC and Format Converter
Weiss DAC 204 Multi-format DAC and Format Converter
Weiss DAC 204 Multi-format DAC and Format Converter
Weiss DAC 204 Multi-format DAC and Format Converter
Weiss DAC 204 Multi-format DAC and Format Converter
Weiss DAC 204 Multi-format DAC and Format Converter
Weiss DAC 204 Multi-format DAC and Format Converter
Weiss DAC 204 Multi-format DAC and Format Converter
Weiss DAC 204 Multi-format DAC and Format Converter
Weiss DAC 204 Multi-format DAC and Format Converter

Weiss DAC 204 Multi-format DAC and Format Converter

Brand New
Reference MRP: Rs. 323,000
Our Price: Rs. 323,000

Tap For Details


For our absolute best pricing, reach us directly at 9764227764.
We can do great deals for serious buyers!

(Includes GST and free shipping)

Ask a Question

Weiss DAC 204 Multi-format DAC and Format Converter
Weiss DAC 204 Multi-format DAC and Format Converter
Reference MRP: Rs. 323,000
Our Price: Rs. 323,000

Tap For Details

About This Product

Brand New
Warranty: 1 year Brand Warranty
Packing: Original Factory Packing

Highlights

A Swiss Army Knife?: It is certainly the most versatile digital-to-analogue converter in Weiss Engineering’s product offering.
Use the DAC204 for easy switching between multiple units with digital outputs — including a computer or mobile with USB out — and enjoy the pristine and low-jitter conversion to analogue audio from the unit’s outputs. The DAC204 can also convert DSD audio to PCM and offers a digital output in the AES/EBU format.
Cover All Your Bases: The DAC204 is a multi-format digital-to-analogue and digital-to-digital converter. Its many input and output options make it equally useful for use in a professional mixing or mastering studio as for an audiophile-grade listening room.
It employs no less than four oversampling sigma-delta D/A converters per channel, operated in parallel for enhanced signal-to-noise performance.
Digital Accepted Here: The DAC204 accepts incoming digital audio streams straight from any USB-equipped computer, tablet, or mobile phone. It can also receive S/PDIF and AES/EBU audio via its S/PDIF or Toslink connectors.
Outgoing AUDIO: The DAC204 converts the incoming digital streams to analogue audio, which simultaneously appears on its balanced XLR connectors and unbalanced RCA connectors.
It can also perform digital-to-digital conversion and output digital audio in AES/EBU or S/PDIF formats through the corresponding connectors and a BNC output connector.
Should the incoming audio be in DSD format, the DAC204 can convert that to PCM.



“The Weiss DAC204 in this system created a big, lush, and finely detailed sound world that felt at once perfectly resolved and fully free, with no sense of the rigid confines that some digital can impose.”- Michael Lavorgna in Twittering Machines

Listening Notes

A rare Swiss single malt—crystal clear, precise, and impeccably balanced. Every detail is revealed with effortless clarity, while the refined complexity of its layers ensures a smooth, immersive experience.

Specs & Features

FEATURES
Inputs: There are two AES/EBU (S/PDIF) inputs on RCA and Toslink (optical) connectors. The sampling frequencies supported are 44.1, 48, 88.2, 96, 176.4 or 192 kHz. In addition there is a USB input which supports sampling frequencies of 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz plus DSD64 and DSD128.

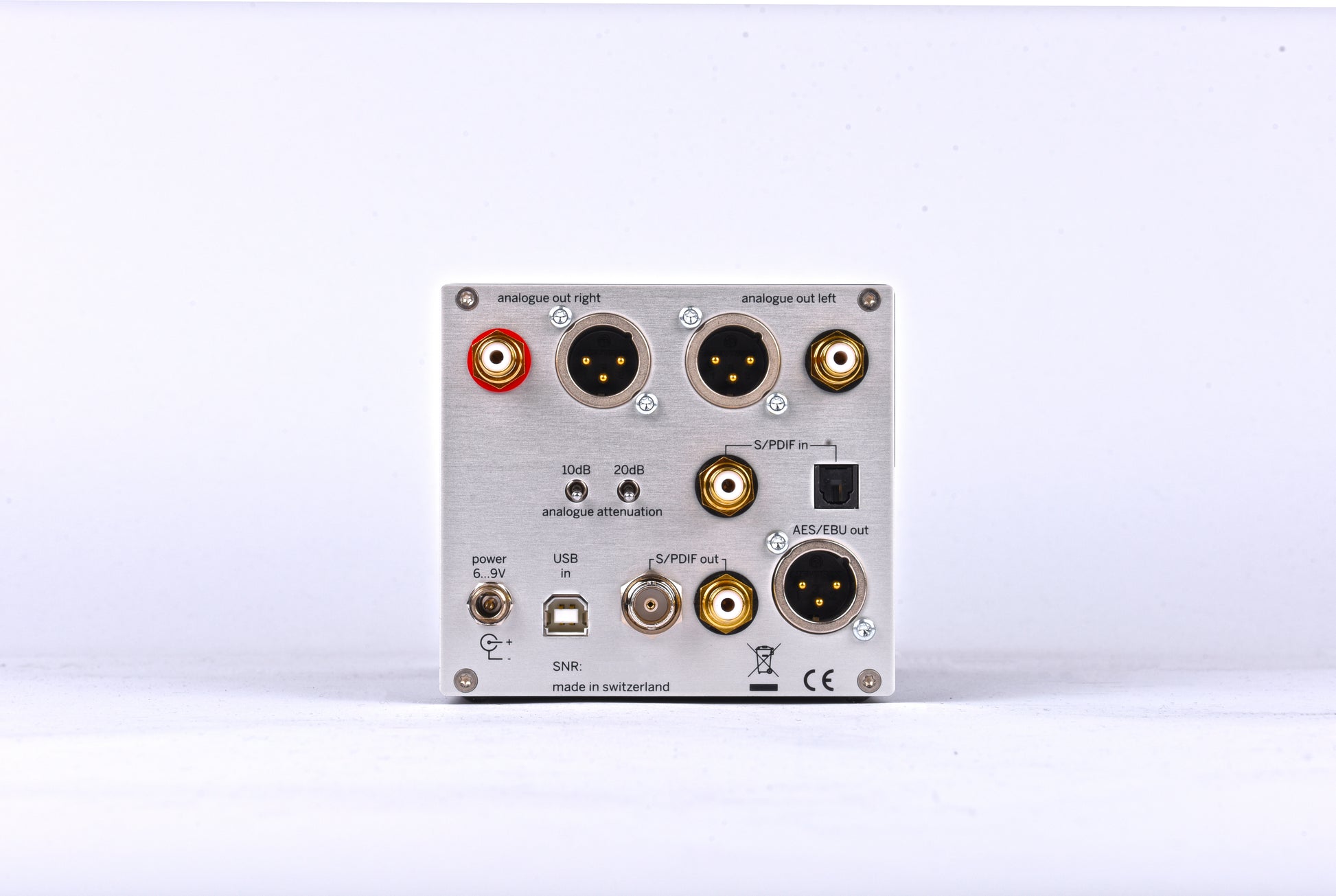

Outputs: The outputs are balanced on XLR connectors and unbalanced on RCA connectors. The XLR outputs have a 6dB higher level than the RCA outputs. The XLR outputs (XLR pin 2 or pin 3) must not be shorted to ground, i.e. there is no servo circuitry implemented. In addition there are three digital outputs with AES/EBU format on XLR, RCA and BNC connectors.
Output Level: Two switches allow to set 4 different output levels at 10dB steps.
Sampling Rates, Word-length: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz at up to 24 Bits are supported. Plus DSD64 and DSD128. • Jitter suppression: Several signal reclocking schemes are combined for a high jitter attenuation.
Converters: Oversampling sigma delta D/A converters are used. Four D/A Converters per audio channel are operated in parallel for enhanced signal to noise performance.
Power Supply: An external power supply is used. The required voltage is between 6V and 9V.

SPECIFICATIONS
Digital Inputs:
(1) RCA connector, (1) Toslink connector (optical) - All inputs accept professional or consumer standard , i.e. accept AES/EBU or S/PDIF signals.
Sampling frequencies: 44.1, 48.0, 88.2, 96.0, 176.4 or 192 kHz on the RCA input.
Sampling frequencies: 44.1, 48.0, 88.2, 96.0 kHz on the Toslink input. - Maximum input word-length: 24 Bits. (1) USB connector - Accepted sampling frequencies: 44.1, 48.0, 88.2, 96.0, 176.4, 192, 352.8, 384 kHz, DSD64, DSD128

Analog Outputs:
(2) XLR connectors (hot output on pin 2, notservo controlled), DC coupled, short circuit proof output circuitry, Output impedance: 44 Ohm (2) RCA connectors, DC coupled, short circuit proof output circuitry, Output impedance: 22 Ohm Output level: Selectable by two toggle switches, 4 settings: XLR outputs: 7.5 Vrms, +19.7 dBu, with a 0 dBFS sinewave input 2.3 Vrms, +9.7 dBu, with a 0 dBFS sinewave input 0.75 Vrms, -0.3 dBu, with a 0 dBFS sinewave input 0.23 Vrms, -10.3 dBu, with a 0 dBFS sinewave input RCA outputs: 3.75 Vrms, +13.7dBu, with a 0 dBFS sinewave input 1.15 Vrms, +3.7dBu, with a 0 dBFS sinewave input 0.375 Vrms, -6.3dBu, with a 0 dBFS sinewave input 0.115 Vrms, -16.3dBu, with a 0 dBFS sinewave input.

Digital Outputs:
(1) XLR connector, (1) RCA connector, (1) BNC connector

Synchronization:
Synchronized via the input signal in the case of RCA or Toslink inputs. In the USB input case the DAC204 is the master clock. - Extremely efficient Jitter attenuation. - Sampling frequencies supported: 44.1 kHz, 48.0 kHz, 88.2kHz, 96.0kHz, 176.4khz, 192kHz, 352.8kHz, 384kHz, DSD64, DSD128

Power:
DC input voltage: 6 to 9 Volt - DC input current: 1050mA at 6V, 700mA at 9V - Power consumption: 6.3 W
